DESCRIPTION
Summit's AL54 series offers undercounter refrigerators designed to fit beneath lower ADA-compliant counters while delivering advanced features for both residential and commercial use.

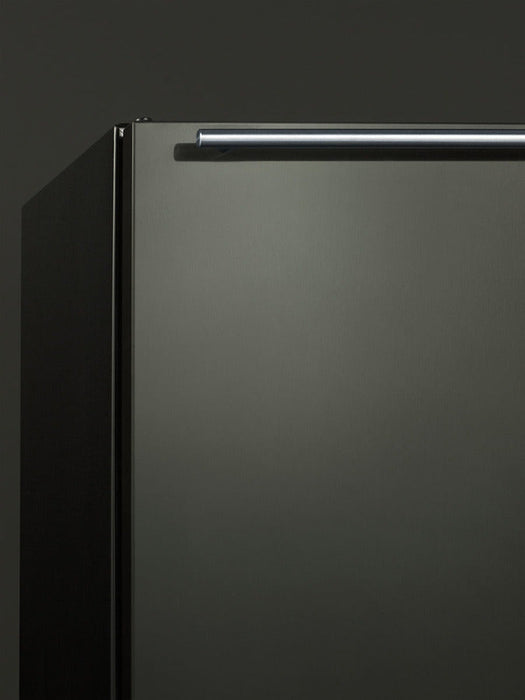

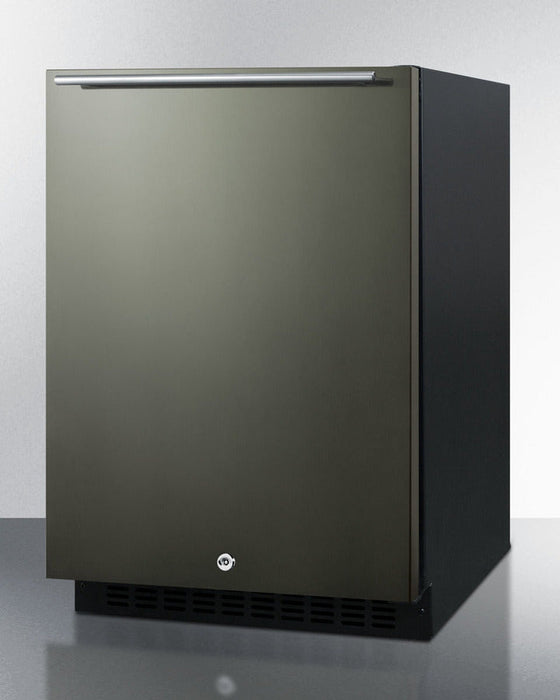

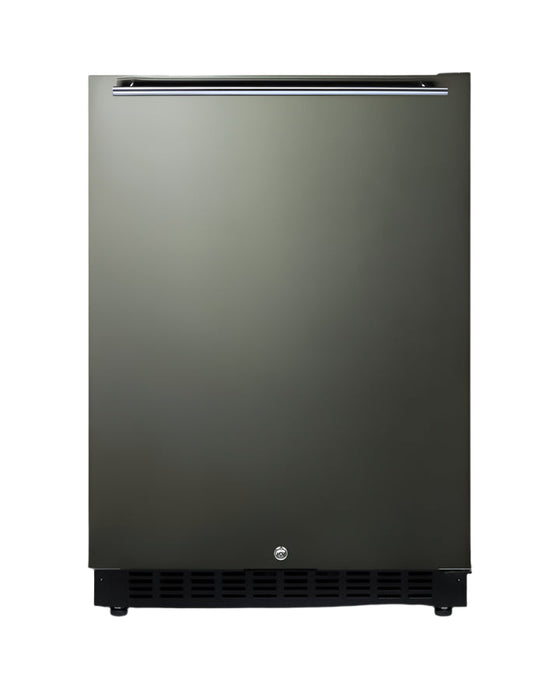

With a 24” footprint and 32” height, the AL54KSHH can be built into cabinetry or used freestanding. Its black stainless steel finish from the exclusive basalt collection adds a modern touch, while the reversible door swing enhances flexibility.

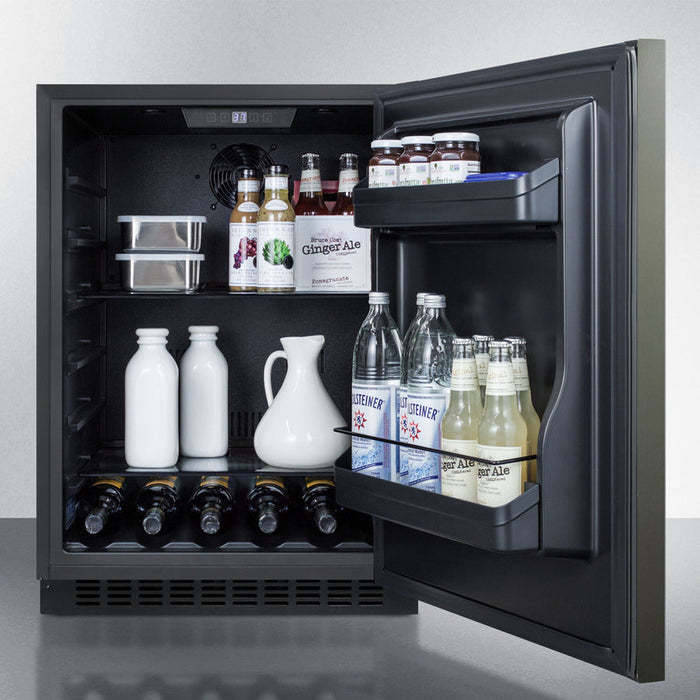

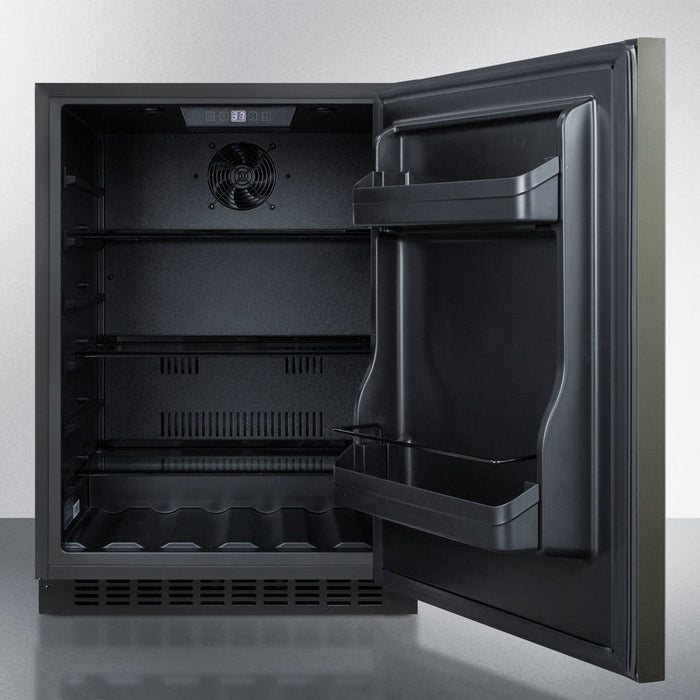

Inside, the unit provides frost-free cooling, adjustable glass shelving, and a slotted floor for bottle storage. The recessed LED lighting, digital thermostat, and alarm functions ensure convenience and reliability.
This model is ETL-S certified to NSF-7 commercial standards and pairs beautifully with the ALFZ53KSHH freezer for a complete undercounter set.
Note: Black stainless steel has a high-gloss, reflective finish that may vary under different lighting conditions.
Specifications
Overview
-
Nominal Height: 32.0" (81 cm)
-
Cabinet Height: 32.0" (81 cm)
-
Nominal Width: 24.0" (61 cm)
-
Width: 23.63" (60 cm)
-
Nominal Depth: 23.0" (58 cm)
-
Depth: 22.63" (57 cm)
-
Depth with Door at 90°: 45.0" (114 cm)
-
Capacity: 4.8 cu.ft. (136 L)
-
Defrost Type: Frost-Free
-
Door Finish: Black Stainless Steel
-
Cabinet Finish: Black
Electrical and Safety
-
US Electrical Safety: ETL
-
Canadian Electrical Safety: ETL-C
-
Sanitation: ETL-S
-
Energy Usage/Year: 270.0 kWh/year
-
Amps: 1.0
-
Voltage/Frequency: 115 V AC/60 Hz
-
Weight: 95.0 lbs. (43 kg)
Warranty
-
Parts & Labor: 1 Year
-
Compressor: 5 Years
-
UPC: 761101060095
Refrigerator Features
-
Sabbath Mode: Yes
-
Door Swing: RHD (Reversible)
-
Shelf Type: Glass (3 adjustable shelves)
-
Door Storage: 2 full-length shelves
-
Thermostat Type: Digital
-
Fan Type: Interior and exterior
-
Refrigerant Type: R600a (0.99 oz.)
-
High Side PSI: 270.0
-
Low Side PSI: 105.0
-
Leveling Legs: 4
-
Interior Light: LED
-
Temperature Range: 36 to 43°F
-
Sound Level: 33.3 dB
Dimensions
-
Interior Height: 25.0" (64 cm)
-
Interior Width: 20.0" (51 cm)
-
Interior Depth: 17.5" (44 cm)
-
Compressor Step Height: 3.25" (8 cm)
-
Compressor Step Width: 20.0" (51 cm)
-
Compressor Step Depth: 5.25" (13 cm)
Features
-
ADA Compliant: 32" height fits under ADA-compliant counters.
-

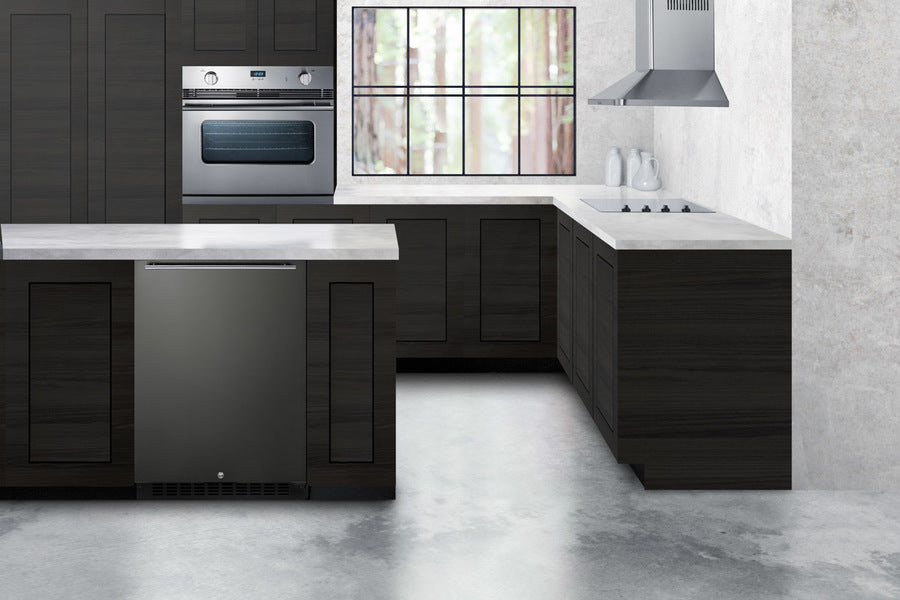

Built-In Capability: Front-breathing design allows seamless undercounter installation.
-
Premium Door Finish: Black stainless steel door resists fingerprints and complements modern interiors.
-
Adjustable Storage: Glass shelves can be rearranged or removed for flexibility.
-
Digital Controls: Easy-to-use thermostat ensures precise temperature management.
-
Enhanced Cooling: Frost-free operation with fan-forced cooling maintains even temperatures.
-
Safety Alarms: Open-door and high-temperature alarms protect stored items.
-
Energy Efficiency: Eco-friendly design meets CARB regulations and uses R600a refrigerant.
Available Upgrades
-
Exterior Options: Left-hand door swing, factory-installed latch, or stainless steel kickplate.
-
Handles: Copper towel bar or full-length copper pipe handle.
-
Door Colors: Custom wraps available in emerald green, saffron gold, cobalt blue, or lavender purple.
