DESCRIPTION
SUMMIT's collection of slim-fitting gas ranges, crafted in North America, delivers quality and functionality to kitchens with limited space.

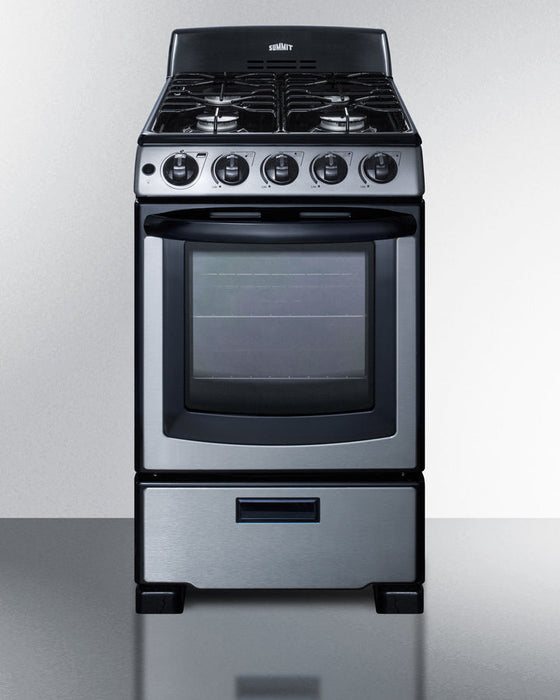

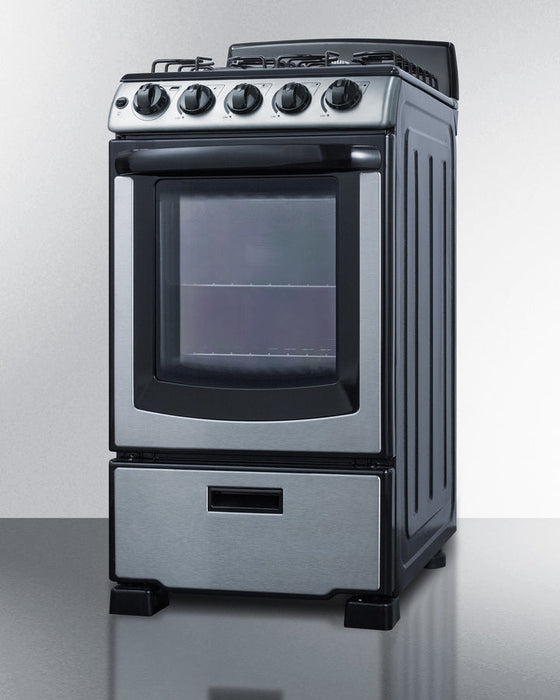

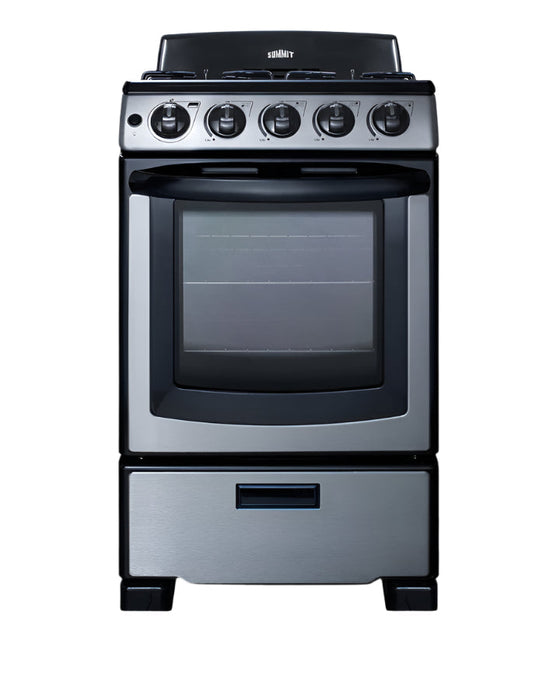

The PRO201SS is a compact 20" wide gas range designed for smaller kitchen layouts. It features a sleek stainless steel and black finish that complements a range of kitchen styles. The stainless steel oven door includes a large viewing window and an easy-grip handle for added convenience. This model uses electronic spark ignition and is equipped with four sealed burners, ensuring safer and cleaner cooking. The burners include one high-powered 12,000 BTU burner for rapid heating, two standard 9,500 BTU burners, and a smaller 5,000 BTU burner for low-heat cooking. The high backguard helps protect walls from spills, while durable enamel grates provide long-lasting performance. The control panel, positioned at the front, includes push-to-turn knobs for enhanced safety.

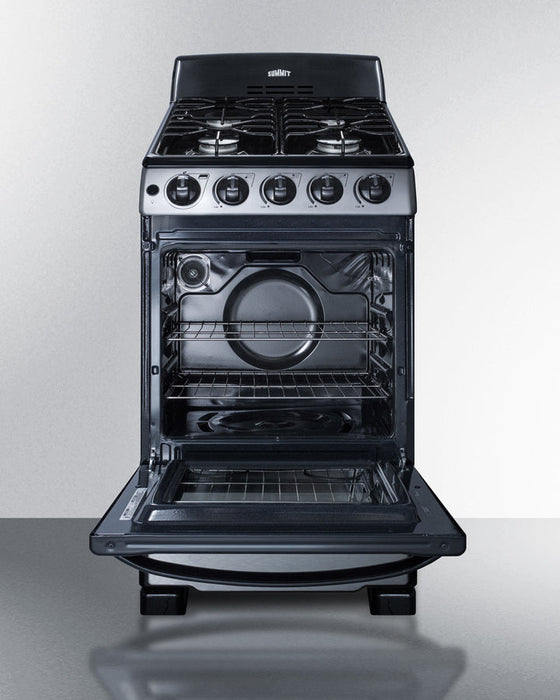

The oven offers a 2.3 cu.ft. porcelain interior with two adjustable racks featuring a safety brake system and four height settings to accommodate various cookware sizes. A broiler is conveniently located in the drop-down lower compartment and comes with a two-piece broiler pan and lid. This range is pre-set for natural gas but includes an LP conversion kit for easy aftermarket adjustments.
With its modern design and unique size, the PRO201SS is an excellent choice for apartments and small home kitchens.
NOTE: This model replaces the PRO200SS and includes an upgraded sealed burner design for improved performance.
SPECIFICATIONS
Overview
-
Nominal Height: 42.0" (107 cm)
-
Cabinet Height: 42.0" (107 cm)
-
Nominal Width: 20.0" (51 cm)
-
Width: 19.5" (50 cm)
-
Nominal Depth: 25.0" (64 cm)
-
Depth: 24.25" (62 cm)
-
Depth with Handle: 26.5" (67 cm)
-
Depth with Door Open at 90°: 44.0" (112 cm)
-
Door Finish: Stainless Steel
-
Cabinet Finish: Black
-
Electrical Safety Certifications: CSA (U.S. and Canada)
-
Voltage/Frequency: 115 V AC / 60 Hz
-
Weight: 97.0 lbs. (44 kg)
-
Warranty: 1 Year (Parts & Labor)
-
UPC: 761101058368
Gas Range
-
Ignition Type: Spark
-
LP Conversion: Yes
-
Oven Capacity: 2.3 cu.ft.
-
Cooktop Surface: Porcelain
-
Burner Type: Sealed
-
Number of Burners: 4
-
Grate Material: Porcelain Enamel
-
Burner Output:
- Burner #1: 12,000 BTU
- Burner #2: 9,500 BTU
- Burner #3: 5,000 BTU
- Burner #4: 9,500 BTU
-
Burner Controls: Dial
-
Oven Controls: Dial
-
Oven Features:
- Interior Light: Yes
- Backguard: Yes
- Cleaning Type: Manual
- Number of Racks: 2
- Window: Yes
-
Oven Interior Dimensions:
- Height: 15.25" (39 cm)
- Width: 14.5" (37 cm)
- Depth: 17.5" (44 cm)
-
Broiler Location: Below Oven
FEATURES
-

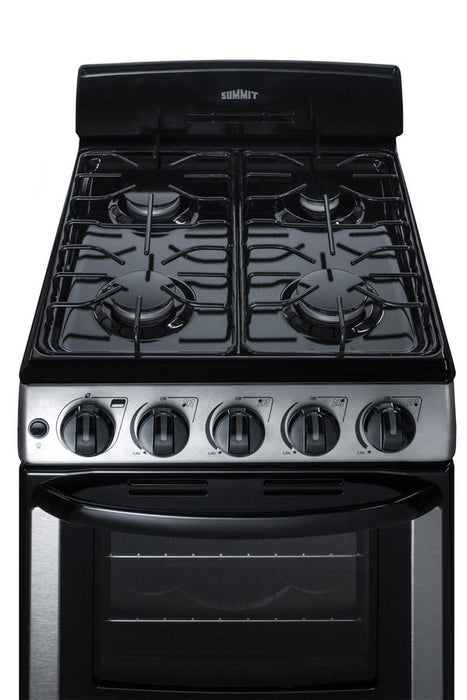

Sealed Burners
Four sealed burners with removable cast iron tops ensure safe and easy cleanup.
-
Compact 20" Width
Ideal for apartments and kitchens with limited space.
-
LP Gas Convertible
Includes a conversion kit to switch from natural gas to LP gas after purchase.
-
Professional Stainless Steel Finish
The door, broiler, control panel, and handle feature a sleek stainless steel design for a polished, modern look.
-
Oven Window with Light
Easily monitor your cooking progress with a convenient window and an on/off oven light.
-
Durable Continuous Enamel Grates
Two removable grates provide strong support for large cookware and easy cleaning.
-
High-Output Burner
The front right burner delivers 12,500 BTUs for powerful, efficient cooking.
-
Versatile Semi-Rapid Burners
Two left burners offer 9,500 BTUs, handling most cooking needs with ease.
-
Precision Low-Output Burner
The rear right burner operates at 5,000 BTUs for delicate and precise heating.
-
Convenient Upfront Controls
The control panel is positioned at the front for safe and easy adjustments without reaching over hot surfaces.
-
Protective Backguard
A high backguard prevents spills and splashes from staining your walls.
-
Porcelain Oven Interior
Built with high-quality porcelain for durability and easy maintenance.
-
Flexible Slide-Out Oven Racks
Includes two racks with four positions for versatile cooking options.
-
Drop-Down Broiler Compartment
A separate lower compartment provides even heat distribution for broiling.
-
Push-to-Turn Knobs
Control knobs require a deliberate push to activate, enhancing safety.
-
Electronic Spark Ignition
Reliable and safe ignition for burners and oven.
-
ADA-Compliant Design
Features upfront controls and easy-to-use knobs for improved accessibility.
-
Power Cord Included
Comes with a standard 115V three-pronged cord for the electronic ignition system.
