DESCRIPTION
Summit Appliance provides a diverse range of American-made cooktops, crafted for durability and ideal for kitchens with limited space.

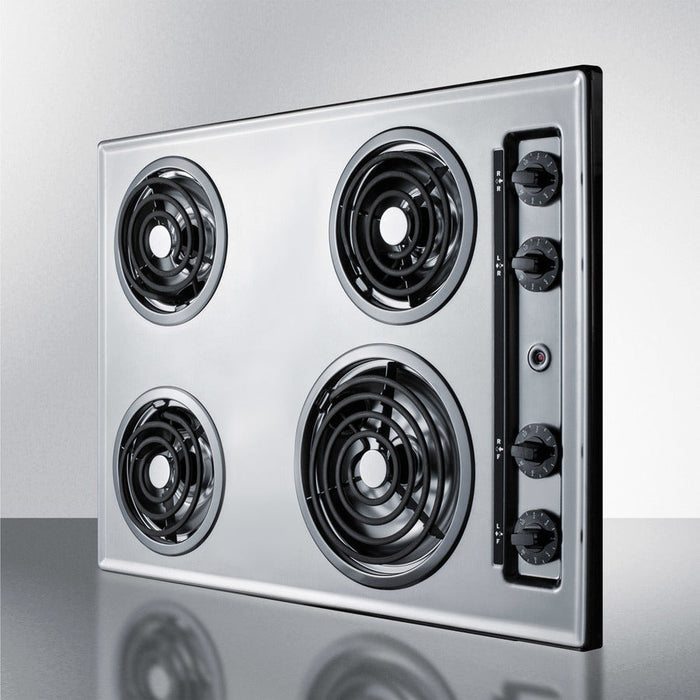

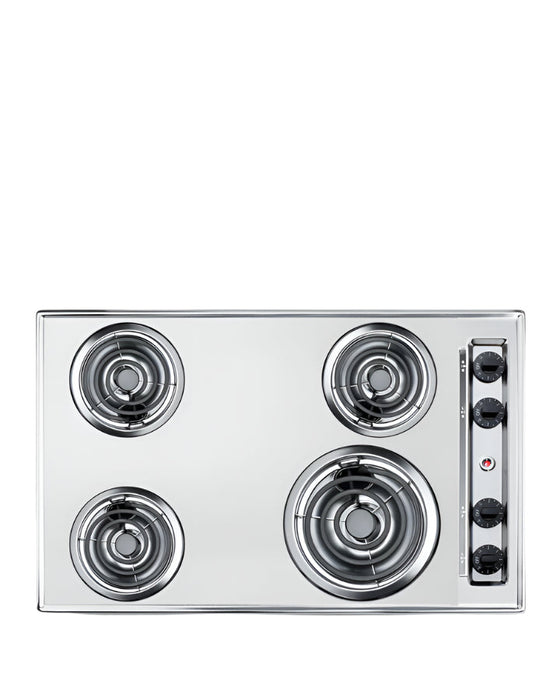

The ZEL05 is a 30" wide, 220-240V electric cooktop designed to fit cutouts measuring 28 3/8" wide by 18 5/8" deep. It boasts a sleek brushed chrome surface and a recessed design to contain spills. Side-mounted push-to-turn knobs ensure easy and safe operation, with indicator lights to show when the cooktop is in use.
Built to meet the latest UL safety standards, this model features one 8" 950W coil element and three 6" 650W coil elements. The lower wattage design allows for steady, slow heating without cycling off. Each coil comes with a removable chrome drip pan for simplified cleanup. This 220V cooktop requires professional installation and is compatible with a standard 40 amp 3- or 4-wire range cord.
Proudly made in the USA, the ZEL05 is available in additional finishes, with 24" size options for compact spaces and matching wall ovens for a coordinated kitchen setup. Visit our website to explore the full collection.
SPECIFICATIONS
Overview
-
Nominal Height: 4.0" (10 cm)
-
Cabinet Height: 3.75" (10 cm)
-
Nominal Width: 30.0" (76 cm)
-
Overall Width: 29.75" (76 cm)
-
Nominal Depth: 20.0" (51 cm)
-
Overall Depth: 20.0" (51 cm)
-
Cabinet Finish: Chrome
-
Safety Certifications: UL (US), ULC (Canada)
-
Electrical Requirements: 230 V AC / 60 Hz
-
Amperage: 30.0 amps
-
Weight: 30.0 lbs. (14 kg)
-
Warranty: 1 year (parts and labor)
-
UPC Code: 761101061665
Electric Cooktop Details
-
Heating Type: Radiant
-
Element Style: Coil
-
Number of Elements: 4
-
Controls: Dial
Countertop Installation Dimensions
-
Cutout Width: 28.38" (72 cm)
-
Cutout Depth: 18.63" (47 cm)
Element Specifications
-
Element #1: 6.0" (15 cm), 675W
-
Element #2: 8.0" (20 cm), 950W
-
Element #3: 6.0" (15 cm), 675W
-
Element #4: 6.0" (15 cm), 675W
Additional Notes
-
Power Cord: Not included; requires a compatible 40 amp 3- or 4-wire range cord.
FEATURES
-
Made in the USA
Expertly designed and built domestically for superior craftsmanship.
-
Classic Fit
Designed to fit 28 3/8" W x 18 5/8" D countertop cutouts seamlessly.
-
Chrome Finish
Sleek metallic surface ensures a professional appearance and lasting durability.
-
Coil Elements
Reliable and durable traditional heating elements suitable for daily use.
-
Safety Burners with Low Wattage Output
Meets the latest UL safety standards with elements operating at lower wattage for steadier, more controlled heating that avoids cycling off.
-
8" Burner
Larger heating element perfect for accommodating wider pots and pans.
-
Three 6" Burners
Standard-sized burners to meet most everyday cooking needs.
-

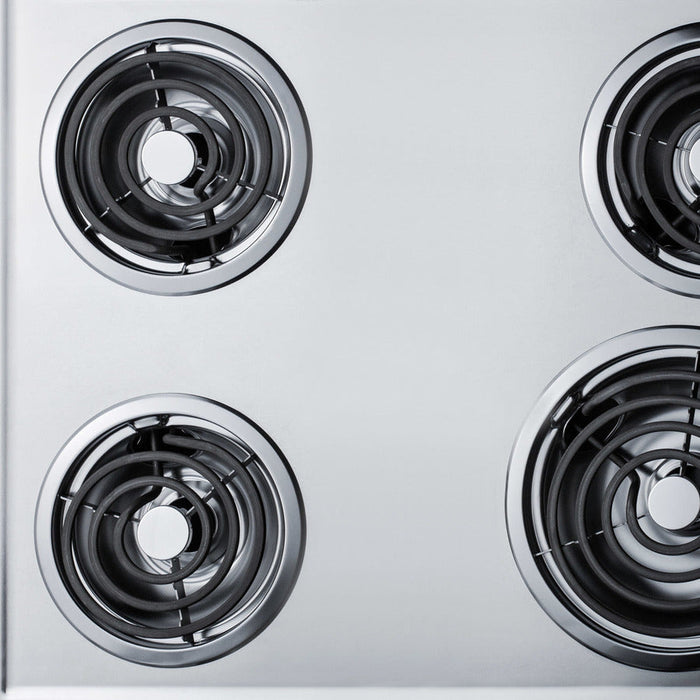

Removable Chrome Drip Pans
Chrome drip pans under each coil element simplify cleanup by catching spills.
-
Recessed Design
Slightly curved surface helps contain spills for easier maintenance.
-
Push-to-Turn Knobs
Knobs require intentional turning for added safety during use.
-

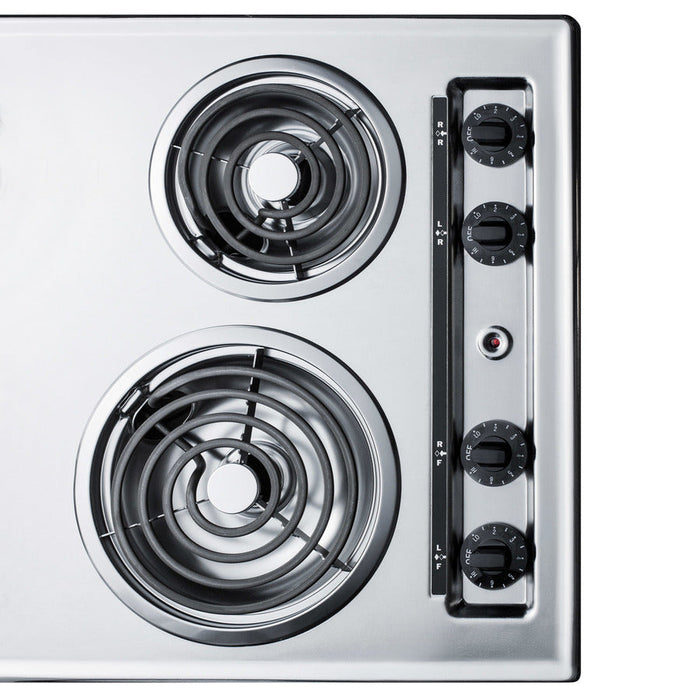

Side-Mounted Controls
Right-side placement minimizes accidental adjustments in busy kitchens.
-
220-240V Operation
Requires professional installation for optimal performance.
-
Cord Not Included
Compatible with standard 40 amp 3- or 4-wire range cords.
